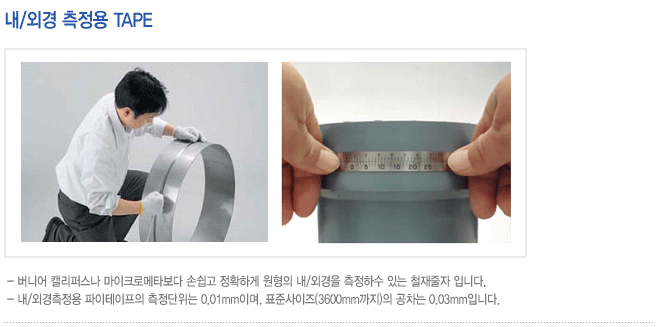

[내/외경 측정용 파이테이프]
*측정단위 : 0.01mm *버니어 폭 : 6.35mm *게이지 폭 : 6.35mm *본체폭 : 12.7mm
*테이프두께 : 0.25mm
| 측정범위(외경) |
PART NO. |
공차(mm) |
| #1095 스프링강 |
716
스테인레스스틸 |
EZ 블루 |
EZ 화이트 |
| 15-50 |
PM000 |
PM000SS |
----- |
PM000WEZ |
±0.03 |
| 28-200 |
PM0 |
PM0SS |
PM0EZ |
PM0WEZ |
±0.03 |
| 28-300 |
PM02 |
PM02SS |
PM02EZ |
PM02WEZ |
±0.03 |
| 50-300 |
PM03 |
PM03SS |
PM03EZ |
PM03WEZ |
±0.03 |
| 100-300 |
PM1 |
PM1SS |
PM1EZ |
PM1WEZ |
±0.03 |
| 50-600 |
PM1SP |
PM1SPSS |
PM1SPEZ |
PM1SPWEZ |
±0.03 |
| 300-600 |
PM2 |
PM2SS |
PM2EZ |
PM2WEZ |
±0.03 |
| 300-900 |
PM2SP |
PM2SPSS |
PM2SPEZ |
PM2SPWEZ |
±0.03 |
| 600-900 |
PM3 |
PM3SS |
PM3EZ |
PM3WEZ |
±0.03 |
| 600-1200 |
PM3SP |
PM3SPSS |
PM3SPEZ |
PM3SPWEZ |
±0.03 |
| 900-1200 |
PM4 |
PM4SS |
PM4EZ |
PM4WEZ |
±0.03 |
| 1200-1500 |
PM5 |
PM5SS |
PM5EZ |
PM5WEZ |
±0.03 |
| 1500-1800 |
PM6 |
PM6SS |
PM6EZ |
PM6WEZ |
±0.03 |
| 1800-2100 |
PM7 |
PM7SS |
PM7EZ |
PM7WEZ |
±0.03 |
| 2100-2400 |
PM8 |
PM8SS |
PM8EZ |
PM8WEZ |
±0.03 |
| 2400-2700 |
PM9 |
PM9SS |
PM9EZ |
PM9WEZ |
±0.03 |
| 2700-3000 |
PM10 |
PM10SS |
PM10EZ |
PM10WEZ |
±0.03 |
| 3000-3300 |
PM11 |
PM11SS |
PM11EZ |
PM11WEZ |
±0.03 |
| 3300-3600 |
PM12 |
PM12SS |
PM12EZ |
PM12WEZ |
±0.03 |
| 3600-3900 |
PM13 |
PM13SS |
PM13EZ |
PM13WEZ |
±0.09 |
| 3900-4200 |
PM14 |
PM14SS |
PM14EZ |
PM14WEZ |
±0.09 |
| 4200-4500 |
PM15 |
PM15SS |
PM15EZ |
PM15WEZ |
±0.09 |
| 4500-4800 |
PM16 |
PM16SS |
PM16EZ |
PM16WEZ |
±0.09 |
| 4800-5100 |
PM17 |
PM17SS |
PM17EZ |
PM17WEZ |
±0.09 |
| 5100-5400 |
PM18 |
PM18SS |
PM18EZ |
PM18WEZ |
±0.09 |
| 5400-5700 |
PM19 |
PM19SS |
PM19EZ |
PM19WEZ |
±0.09 |
| 5700-6000 |
PM20 |
PM20SS |
PM20EZ |
PM20WEZ |
±0.14 |
| 6000-6300 |
PM21 |
PM21SS |
PM21EZ |
PM21WEZ |
±0.14 |
| 6300-6600 |
PM22 |
PM22SS |
PM22EZ |
PM22WEZ |
±0.14 |
| 6600-6900 |
PM23 |
PM23SS |
PM23EZ |
PM23WEZ |
±0.14 |
| 6900-7200 |
PM24 |
PM24SS |
PM24EZ |
PM24WEZ |
±0.14 |
| 7200-7500 |
PM25 |
PM25SS |
PM25EZ |
PM25WEZ |
±0.18 |
| 7500-7800 |
PM26 |
PM26SS |
PM26EZ |
PM26WEZ |
±0.18 |
| 7800-8100 |
PM27 |
PM27SS |
PM27EZ |
PM27WEZ |
±0.18 |
| 8100-8400 |
PM28 |
PM28SS |
PM28EZ |
PM28WEZ |
±0.18 |
| 8400-8700 |
PM29 |
PM29SS |
PM29EZ |
PM29WEZ |
±0.18 |
| 8700-9000 |
PM30 |
PM30SS |
PM30EZ |
PM30WEZ |
±0.18 |
| 9000-9300 |
PM31 |
PM31SS |
PM31EZ |
PM31WEZ |
±0.23 |
| 9300-9600 |
PM32 |
PM32SS |
PM32EZ |
PM32WEZ |
±0.23 |
| 9600-9900 |
PM33 |
PM33SS |
PM33EZ |
PM33WEZ |
±0.23 |
| 9900-10200 |
PM34 |
PM34SS |
PM34EZ |
PM34WEZ |
±0.23 |
|
|
|
